Application
Trailer cable can be used for automotive trailers, trucks or applications that need good resistance to
weather, oil and grease. Cable’s inner conductor is stranded copper and color coded for identification
purposes with a PVC jacket
Description

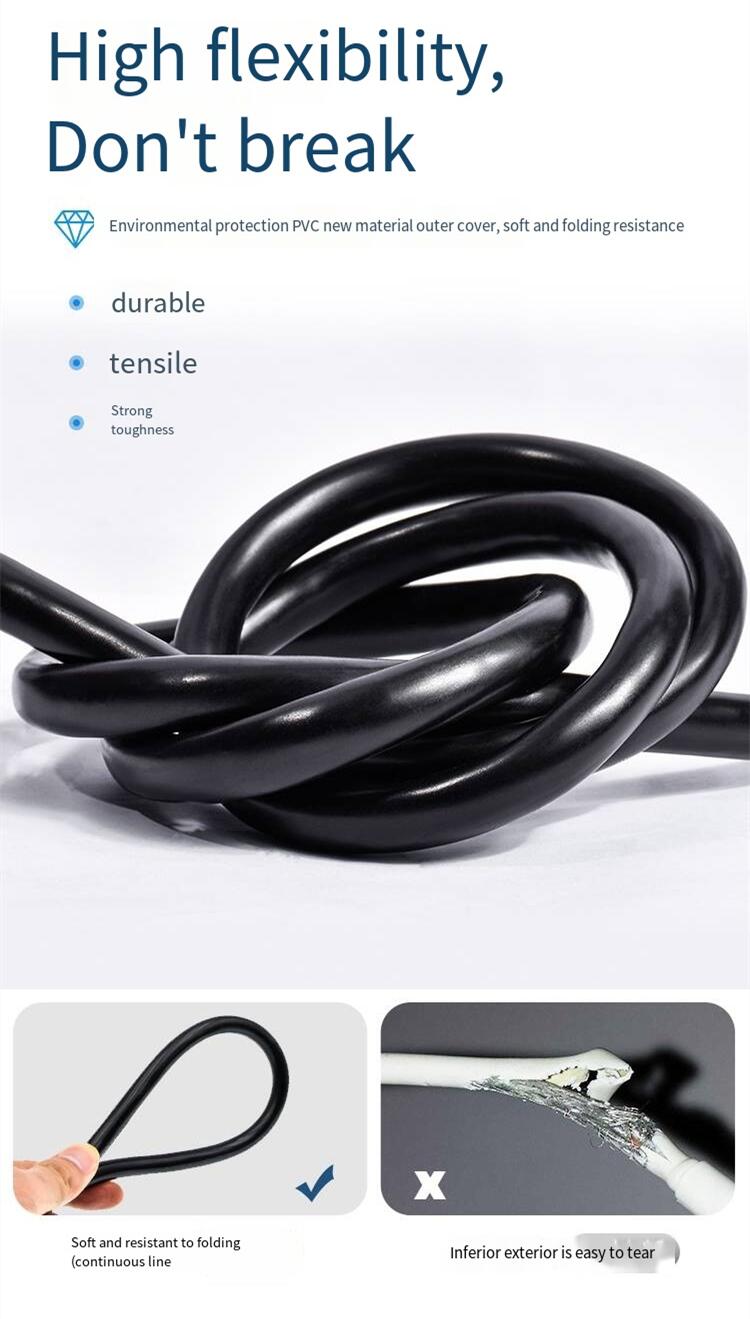

The PVC trailer cable is resistant to the effect of grease, oil, solvents and gasoline and provides flexibility.
Construction

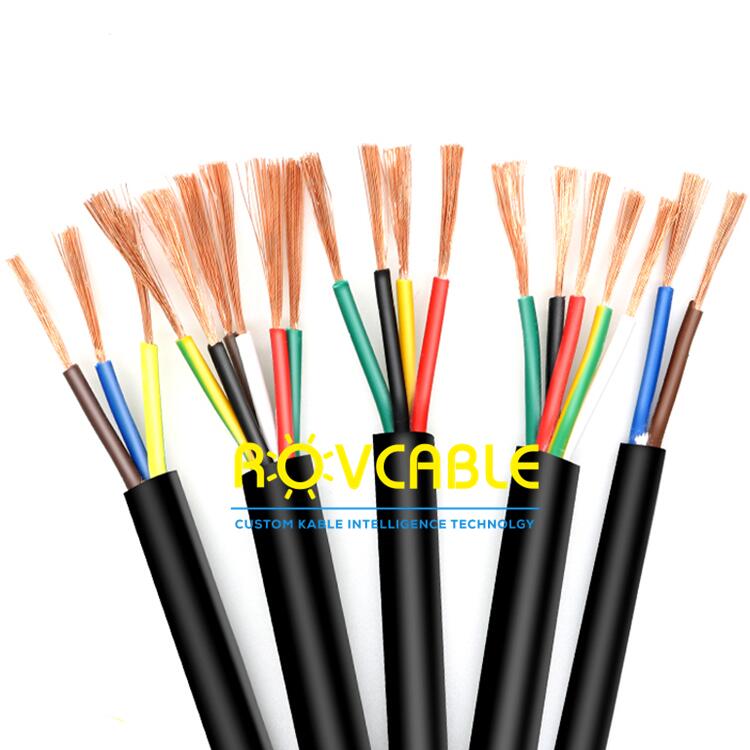

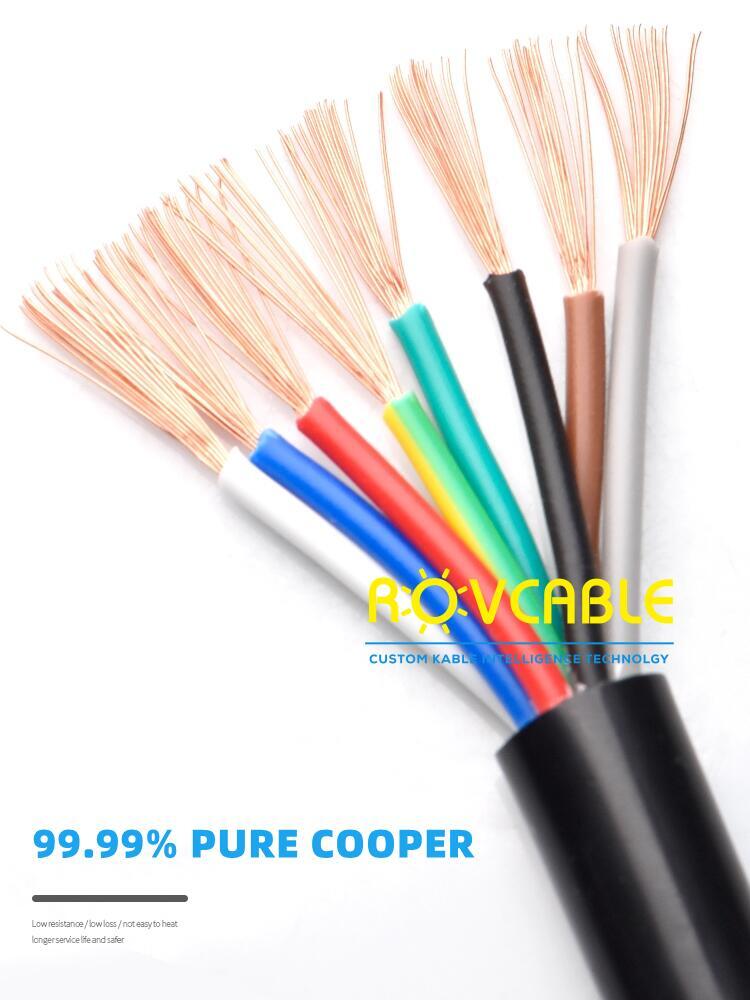

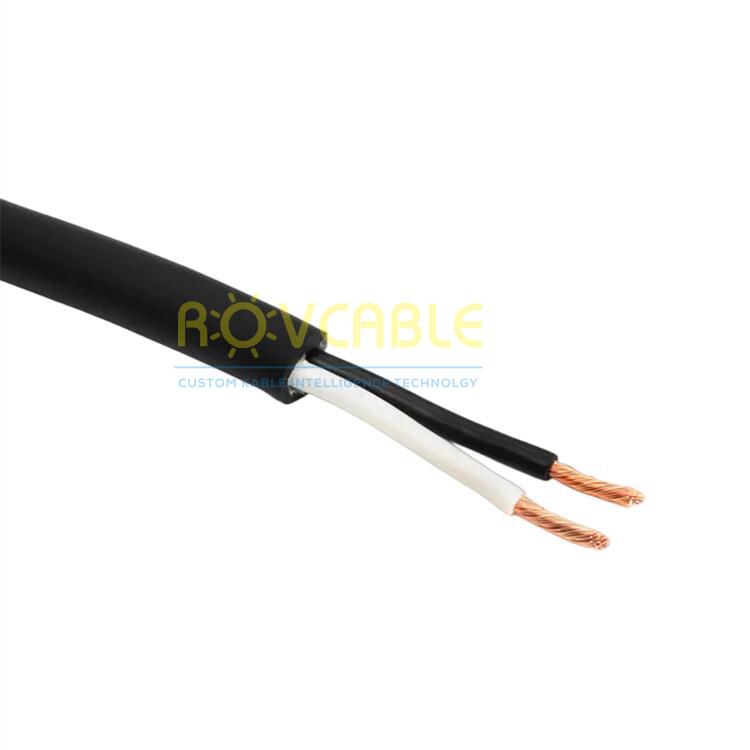

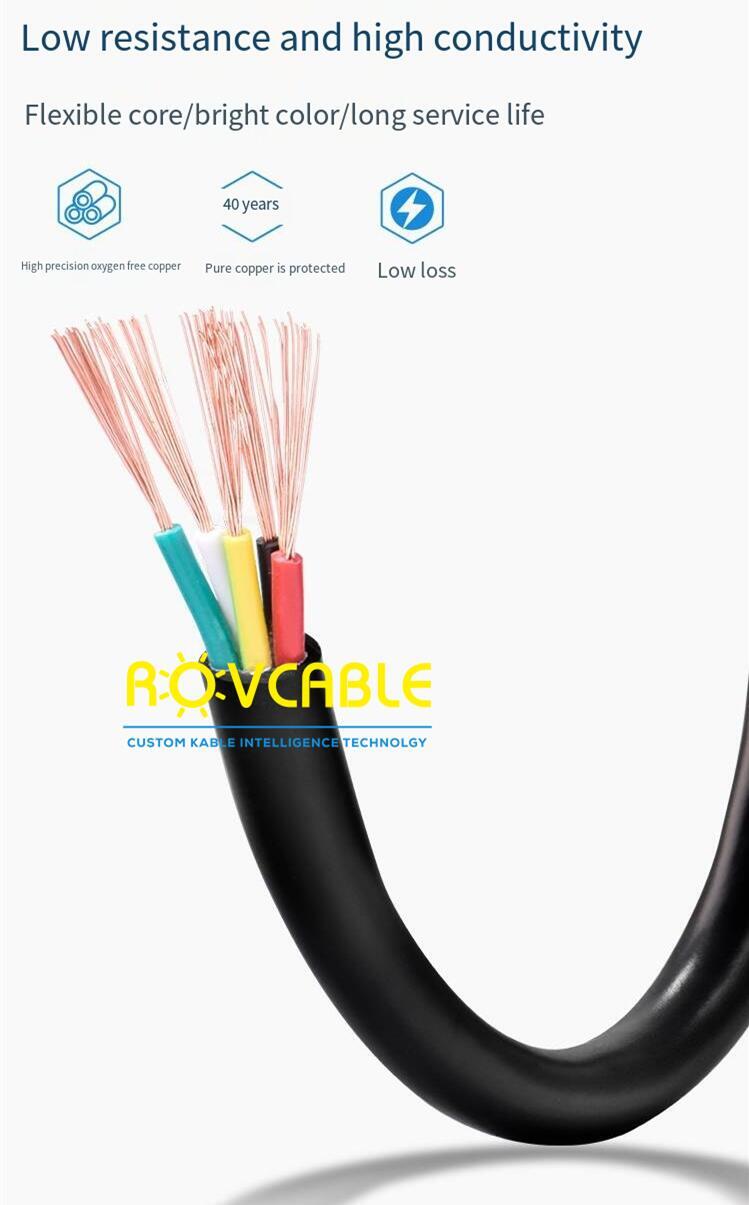

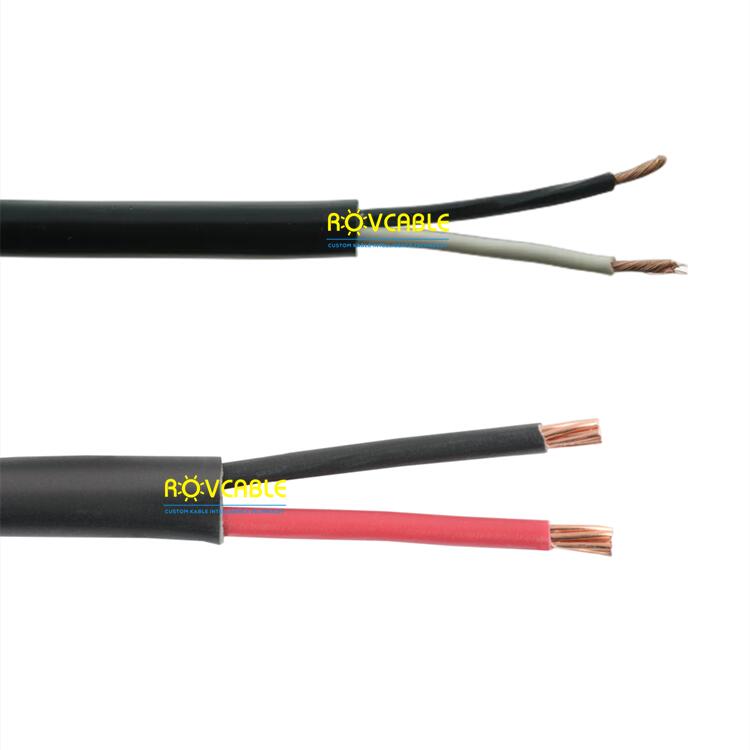

Stranded bare copper conductors
Colour coded Polyvinyl Chloride (PVC) insulation Black PVC jacket
Optional Black thermoplastic elastomer (TPE) jacket
Conductor colors vary, please specify requirements.
Additional configurations may be available – request more information.
Tinned copper conductor may be available on a special order basis. Please contact us to enquire.
TPE (thermoplastic elastomer) jacket is resistant to ozone, oil, solvents, gasoline and abrasion
and is available as an option.
White – Ground return to towing vehicle
Black – ICC-required marker and clearance lamps
Yellow – Left-hand directional signal
Red – Stoplights
Green – Right-hand directional signal
Brown – Tail lamps, three bar marker lamps and other lamps not required by ICC
Blue – Auxiliary circuits
