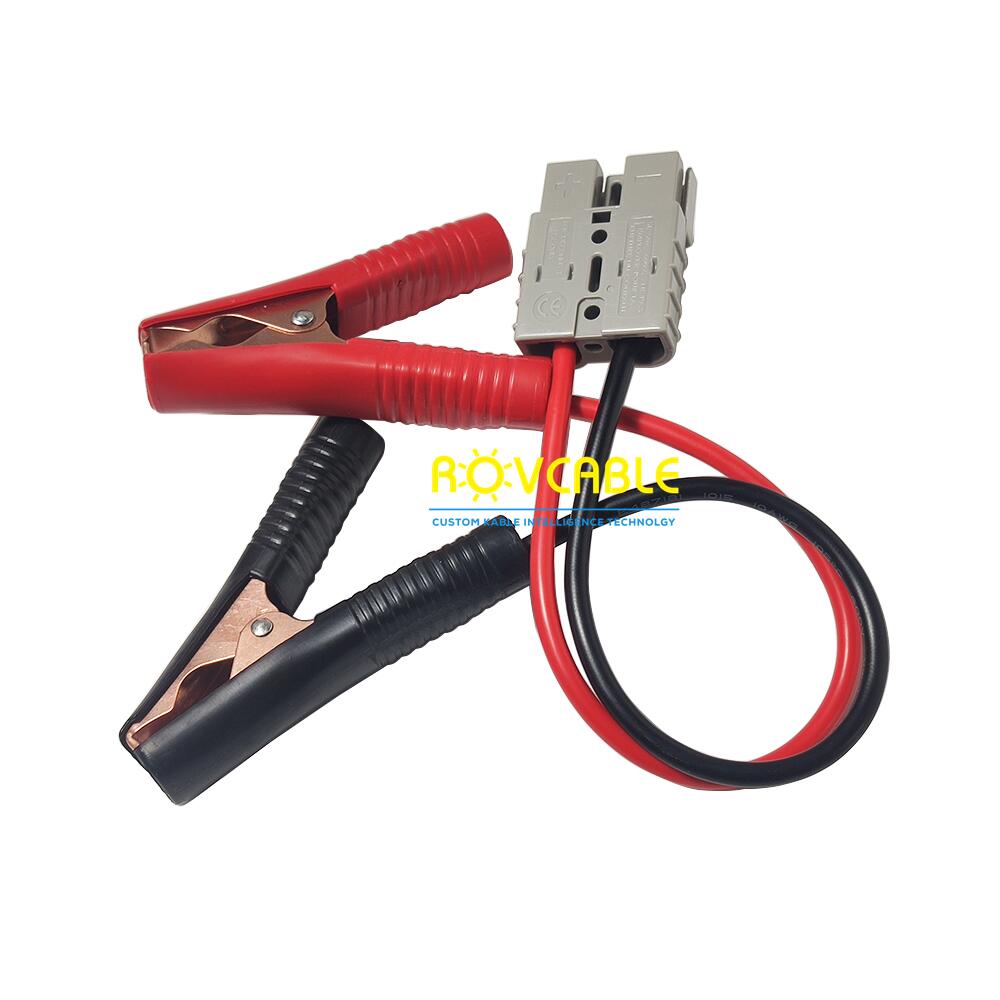

Product name: 50A Anderson plug to 90mm Clip
Specification: 1015 10AWG
Material quality: 5.15mm2
Length; 0.38M
Wire diameter; 5.1mm
Electric current; 50A
Voltage; 12-36V
Input interface: 50A Anderson plug
Output interface: 90mm Copper Clip
Feature:
The Plugs is Impact Resistant Polycarbonate and Connectors are Silver plated Solid Copper Terminals.
Provide simplified assembly and minimize the number of components.
Silver plated copper contacts inside housings that strongly force the contacts together.
Contacts feature a sacrificial tip that allows high current circuit interrupt.
Prevents accidental cross mating of circuits.
For signal transmission or the added safety of a premate ground position.
Easy to use.
Durable in use.
Suitable for Solar Panels, Dual Battery Systems, Caravans, 4WD, Fridges etc.
Specification:
Brand new
Housing Material: Polycarbonate (PC)
Contact material: Pure copper silver plating
Color: Black/Red/Gray
Size: approx. 35.1*48*15.9mm
Rated current: 50A
Rated voltage: 600V
Voltage: for 12v or 24v use
Vibration resistance: excellent
Impact resistance: high
Cable size: 10AWG (up to 5.3 sq mm)
Average contact resistance: 0.05MΩ
Voltage proof: 2200V (DC)
Insulation resistance: 500MΩ
A. No load (Contact/Disconnect Cycles): To 10,000
B. Under load (Hot Plug 250cycless@120V): 50A
Flammability rating of housing material: UL94 V- 0
Operating temperature range: -20° to 105°
Application: Battery Connections, Forklifts, Battery Chargers, Solar Panels, Wind Generators, Tow Trucks,
Snow Plows, Farm Equipment, Jumper Booster Cables, Welding Equipment, Winches, Electric Vehicles etc.
