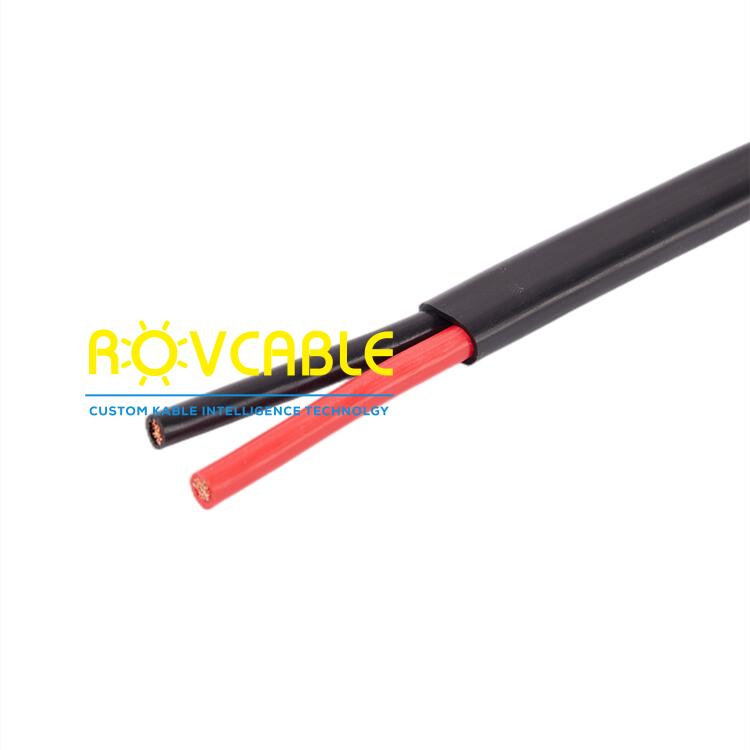

Twin Core Wire Electrical Automotive Cable 2 Sheath 450V 6MM

Twin Cable Sheath Wire. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing,

our twin core sheath wire can handle any application with ease and confidence. And that can make a difference with a good project and a great one

. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity.

Features
* 6MM twin sheath automotive cable
* Oxygen-free copper core conductor
* Low eccentricity
* Reinforced PVC material
* Can normally work up to 450V AC/DC

Specifications:
* Conductor: Oxygen-free plain copper wire to AS/NZ 1125
* Insulation: V90 PVC to AS/NZ 3808
* Sheath: 5V90 PVC to AS/NZ 3808
* Amp rating: 38
* No. of cores: 2
* Cable diameter: 6mm
* Wire Gauge:11AWG
* Strand no. diameter: 57/0.32mm
* Nominal area: 4.58mm²
* Nominal O.D.: 5.7mm x 9.6mm
* Colour: Black sheathing
* Conductor resistance < 4.01 ohm/Km(20 degree centigrade)
* Dielectric strength(kV/sec AC):2.5/60
* Unaged acceptable tensile strength = 12.5Mpa
* Unaged acceptable ultimate elongation =130%
